PRO-72 | Perforatore a Doppia Velocita

PRO-72

PRO-72 è un potente perforatore a base magnetica a 2 velocità che consente una capacità di foratura con frese a corona sino a 70 mm (2-3/4”) e forature con punte elicoidali sino a 25 mm (1”).



Foratura con frese a corona max 70 mm (2-3/4”)
Foratura con punte licoidali max 25 mm (1")
Mandrino MT3
Corsa 190 mm (7-1/2")
Velocità 160 rpm, 390 rpm
Profondità di taglio 75 mm (3")
Potenza
1600 W
Peso 18 kg (40 lbs)

PRO-72 | Perforatore a Doppia Velocita

Grazie all’innovativo magnete intelligente e più leggero, la PRO-72 pesa solo 18,0 kg (40 lbs). Il suo design rigido prolunga la durata dell’utensile e la regolazione semiautomatica delle guide, consente un funzionamento semplice, veloce e corretto in pochi semplici passaggi. PRO-72 fornisce la massima potenza di tenuta su materiali sottili grazie al Controllo della Forma del Campo Magnetico (MFSC). La funzione Controllo Adesione Potenza Elettromagnetica (MPAC) preserva la macchina e l’incolumità dell’operatore nel caso in cui lo spessore risulta inferiore al limite minimo consentito. PRO-72 è inoltre dotato della funzione Base Magnetica con Risparmio Energetico (ESB) che utilizza solo il 50% della sua potenza quando il motore non è in funzione.

  • potente motore dotato di 2 riduzioni giri per impieghi pesanti
  • foratura con frese HSS e TCT oppure punte elicoidali
  • design rigido per prolungare la vita dell’utensile
  • innovativo magnete intelligente con peso ridotto
  • il controllo del campo magnetico (MFSC) offre la massima potenza di adesione magnetica su materiali sottili
  • modulo di controllo dell’adesione elettromagnetica (MPAC) rileva la forza di tenuta della base elettromagnetica e protegge sia il dispositivo che l’operatore dal lavoro su particolari troppo sottili
  • la base magnetica, grazie alla funzione di risparmio energetico (ESB), utilizza solo il 50% della sua potenza quando il motore non è in funzione
  • Sistema semi-automatico di regolazione
  • Design leggero

Caratteristiche e benefici:

Capacità di foratura con frese a corona sino a 70 mm (2-3/4″)

Profondità massima fino a 75 mm (3″)
Corsa massima fino a 190 mm (7-1/2″)

Capacità di foratura con punte elicoidali sino
a 25 mm (1″) Design leggero di soli 18 kg (40 lbs)

Brochure

Make sure you are familiar with Promotech PRO-62 | Annular Cutter Drilling Machine brochure including technical data and detailed information about this product. Should you have any further questions we encourage you to send us an enquiry.

Accessori opzionali:

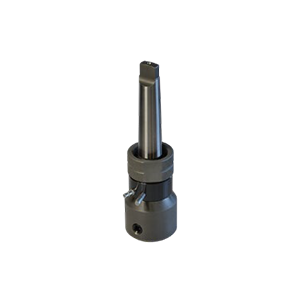

Mandrino MT3 x 32 mm Weldon per
diametro di foratura oltre 60 mm (2.3”)
fino a 50 mm (2”) di profondità
Codice prodotto: UCW-0686-08-00-00-0

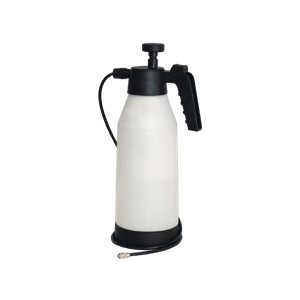

Spruzzatore a pressione
con capacità 2 litri
Codice prodotto: UKL-0440-16-00-00-0

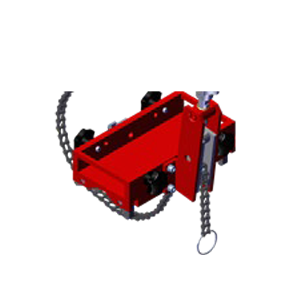

Dispositivo per fissaggio su tubi DMP 251
per diametri 80-250 mm (3-10”)
Codice prodotto: PDS-0110-03-00-01-0

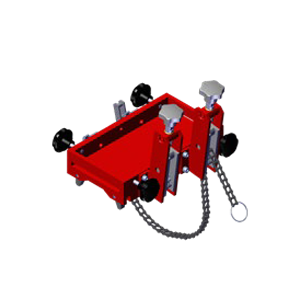

Dispositivo per fissaggio su tubi DMP 501
per diametri 150-500 mm (6-20”)
Codice prodotto: PDS-0111-03-00-01-0

Specifica Tecnica

Velocità del motore (sotto carico)160 rpm (gear I)
390 rpm (gear II)
Potenza1600 W
Peso18 kg (40 lbs)
Foratura con frese a corona max70 mm (2-3/4”)*
Foratura con punta elicoidale25 mm (1”)
Corsa190 mm (7-1/2”)
Massima profondità di taglio70 mm (2-3/4")*
Tensione1~ 220–240 V, 50–60 Hz
Gib Sistema semi-automatico di regolazioneSi
MFSC (Controllo forma campo magnetico)Si
MPAC (Controllo adesione potenza elettromagnetica)Si
ESB (Base magnetica con risparmio energetico)Si
Forza adesione magnetica
(spessore 25 mm e rugosità Ra=1.25)
1122 kgf (11 000 N)
Dimensioni base magnetica92 mm × 180 mm × 54 mm
3-5/8" x 7" x 2-1/8"
Spessore minimo della lamiera8 mm (5/16")
Cono morseMT3
Porta utensile19 mm (3/4”) Weldon
Codice prodotto 220-240 V, 50-60 Hz
Codice prodotto 110.120 V, 50-60 Hz
WRT-0687-10-20-00-0
WRT-0687-10-10-00-0
* Se superiore a 60 mm (2-3/8”), utilizzare un mandrino MT3 con portautensile Weldon da 32 mm
(UCW-0686-08-00-00-0)
