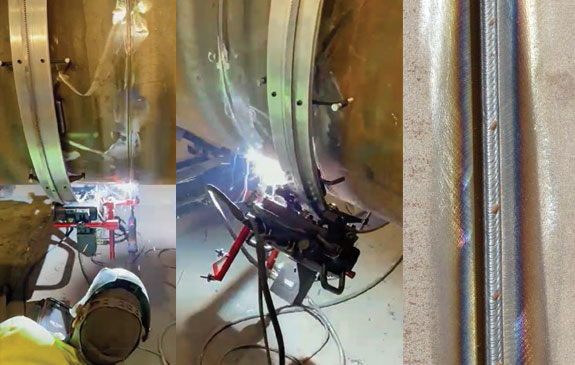

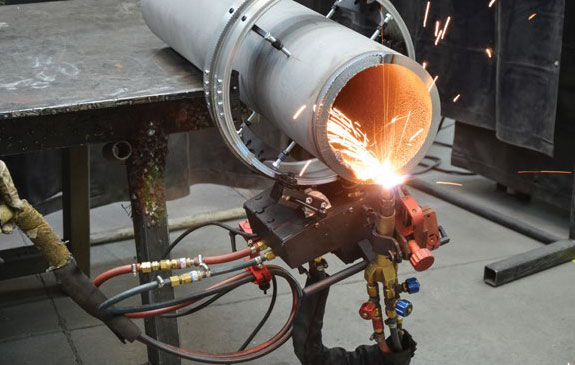

Rotaia ad anello

Disponibili su richiesta, il diametro può essere personalizzato all’interno della gamma con diametro esterno da 200 mm fino a 3000 mm (da 8” a 10 ft). Le rotaie ad anello possono essere equipaggiate con diversi supporti a seconda delle esigenze applicative.

  • For circumferential applications from 200 mm OD up to 3000 mm OD (from 8” to 10 ft)
  • Consists of either two or four segments depending on the workpiece diameter
  • Nominal OD diameter can be adjusted upwards by 50 mm
  • Nominal OD diameter can be adjusted downward by 50 mm by means of optional
  • bracket for ring track supports
  • Can be fixed on both ferrous and non-ferrous materials by means of 3 types of supports

Rif.Codice prodottoDescrizione
1Vedere le tabelle a destraRotaie ad anello
2WSP-0654-11-00-00-0Supporto con viti
3WSP-0654-13-00-00-0Supporto con magneti
4WSP-0654-12-00-00-0Supporto con piedini in plastica
5DYS-0523-14-14-00-0Supporto per rotaia ad anello adatto per aumentare il range del diametro di 50 mm

Diametro esterno del tubo
Min. [mm]
Diametro esterno del tubo
Max. [mm]
Codice prodottoSegmenti dell’anelloSupporti per rotaia ad anello necessari
200250TRO-0523-14-00-00-024
250300TRO-0523-78-00-00-024
300350TRO-0523-20-00-00-024
350400TRO-0523-21-00-00-024
400450TRO-0523-23-00-00-026
450500TRO-0523-24-00-00-026
500550TRO-0523-25-00-00-026
550600TRO-0523-26-00-00-026
600650TRO-0523-22-00-00-026
650700TRO-0523-28-00-00-026
700750TRO-0523-29-00-00-026
750800TRO-0523-30-00-00-026
800850TRO-0523-31-00-00-026
850900TRO-0523-32-00-00-026
900950TRO-0523-33-00-00-028
9501000TRO-0523-34-00-00-028
10001050TRO-0523-35-00-00-028

Diametro esterno del tubo
Min. [mm]
Diametro esterno del tubo
Max. [mm]
Codice prodottoSegmenti dell’anelloSupporti per rotaia ad anello necessari
10501100TRO-0523-36-00-00-039
11001150TRO-0523-37-00-00-039
11501200TRO-0523-38-00-00-039
12001250TRO-0523-39-00-00-039
12501300TRO-0523-40-00-00-039
13001350TRO-0523-41-00-00-0312
13501400TRO-0523-42-00-00-0312
14001450TRO-0523-43-00-00-0312
14501500TRO-0523-44-00-00-0312
15001550TRO-0523-45-00-00-0312
15501600TRO-0523-46-00-00-0312
16001650TRO-0523-47-00-00-0312
16501700TRO-0523-48-00-00-0312
17001750TRO-0523-49-00-00-0312
17501800TRO-0523-50-00-00-0312
18001850TRO-0523-51-00-00-0312
18501900TRO-0523-52-00-00-0315
19001950TRO-0523-53-00-00-0315
19502000TRO-0523-54-00-00-0315
20002050TRO-0523-55-00-00-0315

Diametro esterno del tubo
Min. [mm]
Diametro esterno del tubo
Max. [mm]
Codice prodottoSegmenti dell’anelloSupporti per rotaia ad anello necessari
20502100TRO-0523-56-00-00-0416
21002150TRO-0523-57-00-00-0416
21502200TRO-0523-58-00-00-0416
22002250TRO-0523-59-00-00-0416
22502300TRO-0523-60-00-00-0420
23002350TRO-0523-61-00-00-0420
23502400TRO-0523-62-00-00-0420
24002450TRO-0523-63-00-00-0420
24502500TRO-0523-64-00-00-0420
25002550TRO-0523-65-00-00-0420
25502600TRO-0523-66-00-00-0420
26002650TRO-0523-67-00-00-0420
26502700TRO-0523-68-00-00-0420
27002750TRO-0523-69-00-00-0420
27502800TRO-0523-70-00-00-0420
28002850TRO-0523-71-00-00-0420
28502900TRO-0523-72-00-00-0420
29002950TRO-0523-73-00-00-0420
29503000TRO-0523-74-00-00-0420
30003050TRO-0523-75-00-00-0420
